Horizontal Projectile Motion Review



Anything that travels through the air without guiding its flight is a projectile. Examples include a spear, arrow,bullet, cannonball, model rocket, baseball, football, skydiver. Non-projectiles are parachutes, airplanes, helicopters, gliders, birds when flying. Air resistance is a factor in a projectile's flight. However, at this level of physics, air resistance, also called "drag," will always be ignored.

Projectile motion problems are kinematics problems in 2 dimensions.

When solving projectile motion problems always:

  • Be clear in your solution and use lots of space on your paper. Conserving paper will cost you points because it makes for poor communication. Plan on using a page for each problem's solution.
  • Draw and label a picture
  • List the given in a clear table
  • Show your requations
  • If needed, insert an equation into another equation before replacing variables with numbers and units, (like in example 1 below.)


Practice 1

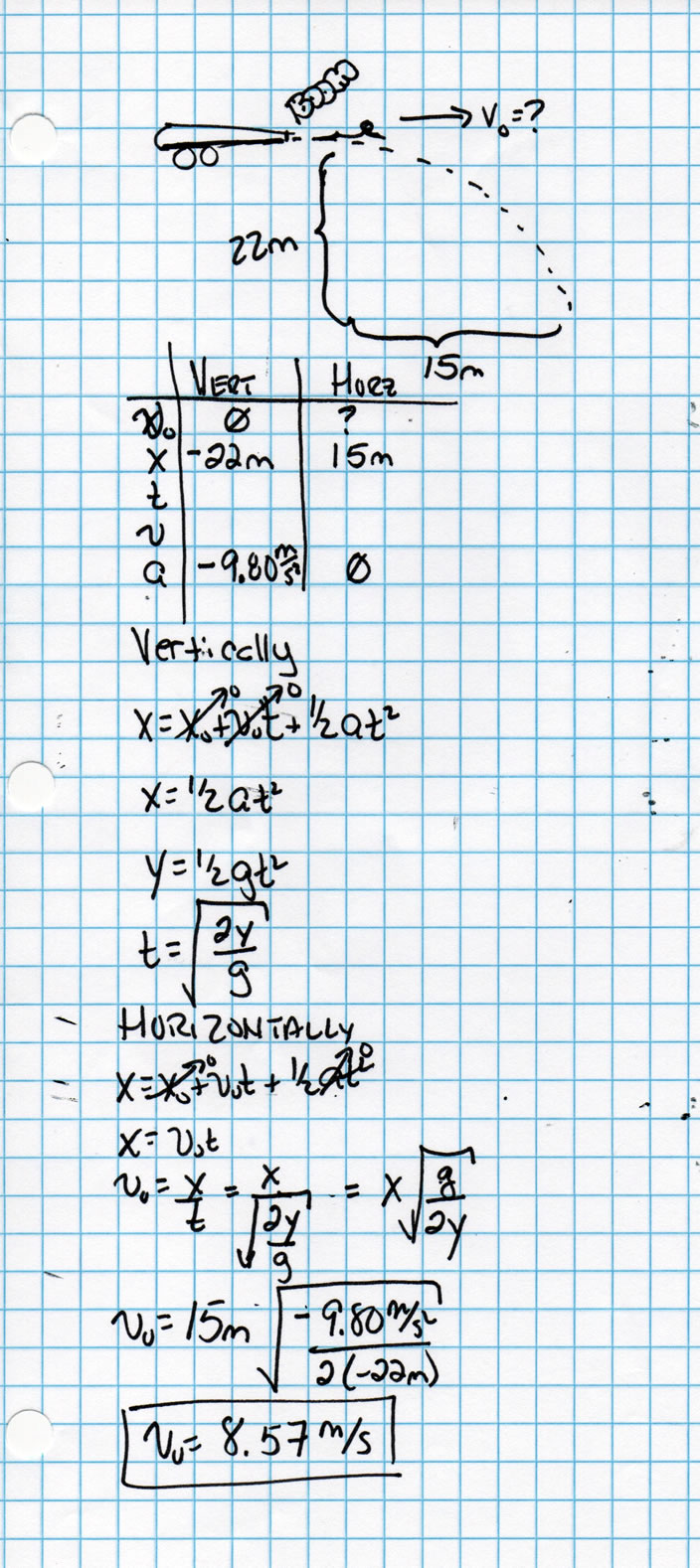

In a crazy stunt for the television show, America’s Got Talent, a woman places a large cannon on top of a building 22.0 m above the ground. When the woman is shot horizontally out of the cannon she will land 15.0 m along the ground from the front of the cannon. How fast was she moving when she left the cannon?

This is what should appear on your paper.

  • Drawing with measurements
  • "Givens" table.
  • Equations with variables only.
  • Equations substatuted into other equations.
  • Numbers and units
  • Answer with units.

This video can be found on YouTube at https://youtu.be/HCtBnlfJUTQ

Practice 2

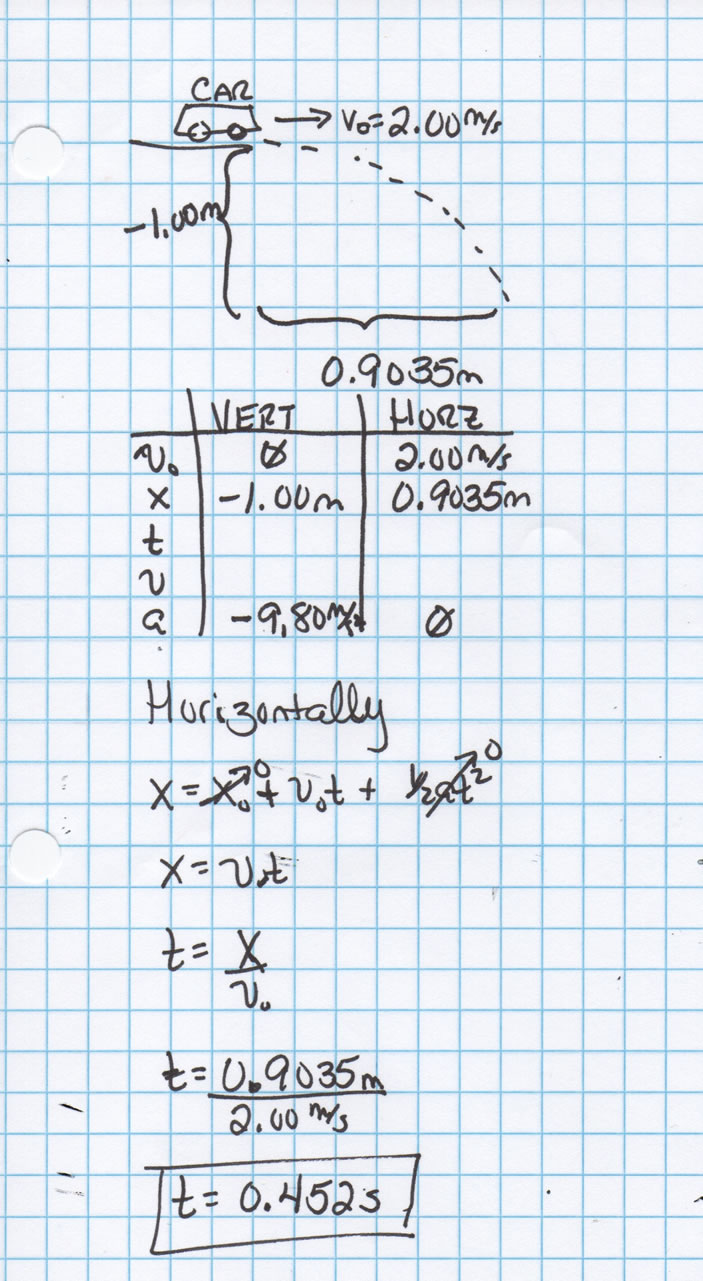

A toy car rolls horizontally off a table that is 1.00 m above the floor at 2.00 m/s. The car lands 0.9035 m from the edge of the table, along the floor. How much time did the toy car spend in the air?

This is what should appear on your paper.

  • Drawing with measurements
  • "Givens" table.
  • Equations with variables only.
  • Equations substatuted into other equations.
  • Numbers and units
  • Answer with units.

You can also solve this problem using only the verical givens. You will get the same answer. The video shows how to do this.



This video can also be found on YouTube at https://youtu.be/C96buly5OE8

Practice 3

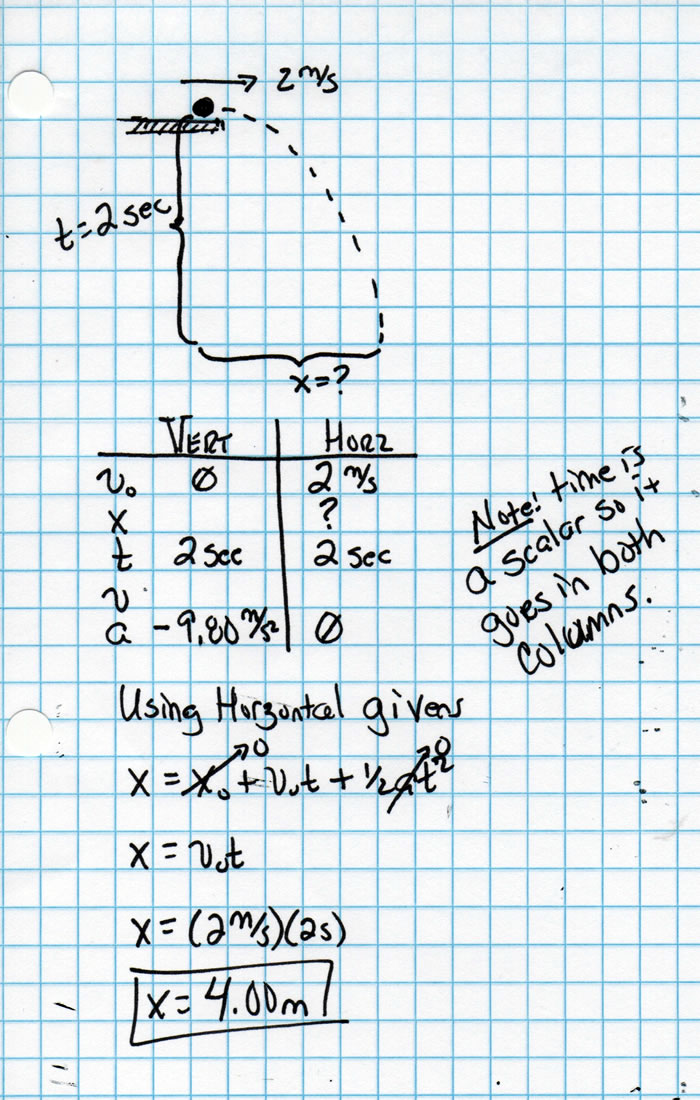

A basketball rolls horizontally off a high bleacher at 2.00 m/s. It takes exactly 2 seconds to land on the ground. How far away, horizontally, did it travel before landing on the floor?

This is what should appear on your paper.

  • Drawing with measurements
  • "Givens" table.
  • Equations with variables only.
  • Equations substatuted into other equations.
  • Numbers and units
  • Answer with units.

Practice 4

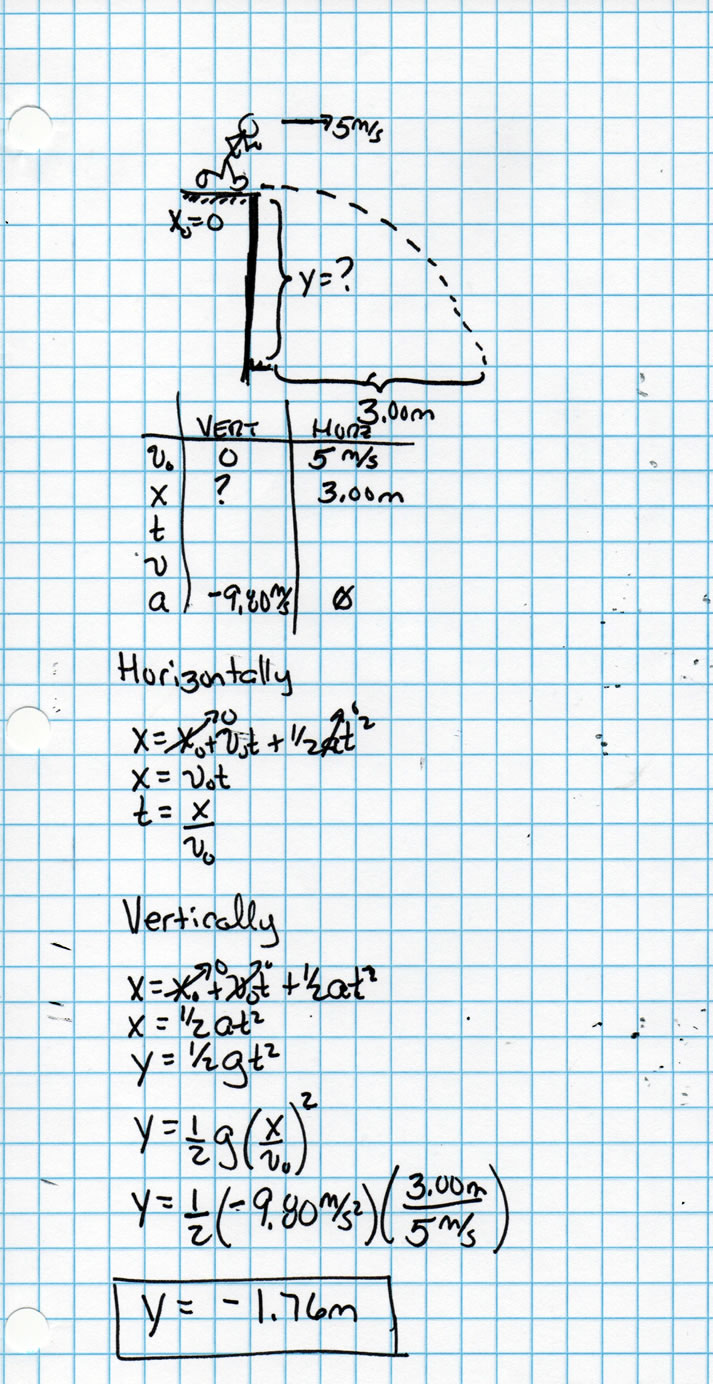

Tim runs horizontally off a ledge at 5.00 m/s into a pond. He lands 3.00 m away from the edge. How high was the ledge Tim jumped from?

This is what should appear on your paper.

  • Drawing with measurements
  • "Givens" table.
  • Equations with variables only.
  • Equations substatuted into other equations.
  • Numbers and units
  • Answer with units.

More Problems

  1. A ball rolls horizontally off a table 1.2 meters high. If the ball travels along the table at a constant 2.0 m/s then how far from the table's edge will it land?

  2. A person runs horizontally off a ledge that is 5.0 m high and lands in a lake 3.0 meters, horizontally, from the edge. How fast was the person traveling then they were running on the ledge?

  3. A car is traveling at 25 m/s per second when it travels horizontally off a road and lands 3.0 m below. How much time did it spend in the air?

  4. At the King’s Dominion water park a teenager shoots horizontally off a water slide at 9.0 m/s. They land horizontally 4.5 m from the edge of the slide’s bottom. How high is the bottom of the slide from the water?

  5. A baby slides a Cheerio horizontally off the high chair’s tray. The tray is 0.95 m above the floor and the Cheerio is traveling at 1.5 m/s when it leaves the tray, how far horizontally will the Cheerio land from the edge of the tray?

  6. A ball rolls 0.75 meters horizontally across a table top in 0.40 seconds before leaving the edge of the table. The table is 1.1 m above the floor. How from the edge of the table will the ball land?

  7. You’ve just discovered these guys horizontally off a cliff at the edge of a deep river while doing some crazy flips in the air. If they run off the cliff at 5 m/s and land 8.0 meters from the edge of the cliff, then how high is the cliff?


Answers: (1) 0.990 m (2) 2.97 m/s (3) 0.782 s (4) 1.23 m (5) 0.660 m (6) 0.888 m (7) 12.5 m


by Tony Wayne ...(If you are a teacher, please feel free to use these resources in your teaching.)
