PHYSICS
CIRCULAR
MOTION
WORKSHEETS |
PHYSICS CIRCULAR
MOTION OBJECTIVES |
Students will be able to:
- Define the period of motion
- Define the frequency for motion
- Mathmatically relate the period and frequency
- Convert from RPMs (revolutions per second) to Hertz
- Use the definitions of period and frequency to solve word
problems
- Discuss the relationship between centrifugal and centripetal
forces.
- Describe why a person slides to the outside of a curve
in a car as observed from inside the car.
- Discuss what supplies the centripetal forces
- Correctly write the units equations from memory
- List the S. I. units associates with each quantity
- Solve word problems utilizing the formulae and conepts
in the unit.
- Calcualte the gs felt by a rider in an amusment park
when
- he/she is spun in a horizontal circle (carousel)
- he/she is spun in a vertial circle (roller coaster
loops, playground swings.)
- Describe why an irregular shaped roller coaster loop is
better than a circular loop.
- Solve problems based on an automobiles ability to supply
a lateral acceleration and its cornering.
- Solve problems utilizing formulae and ratios.
PHYSICS
CIRCULAR
MOTION
WORKSHEETS |
Answer all questions in standard SI units. FREQUENCY
AND PERIOD PROBLEMS
1. A turntable rotates an album at 33 revolution per minute, RPM. What
frequency is this?
2. A cars engine spins at 1500 RPM. What is the frequency of the
rotating engine?
3. Little Bobby Bolo noticed his bolo swung around his head 3 times
every 1.40 seconds. What is the period and frequency is of the rotating
bolo?
4. A baton twirler spins her baton 12 times in a second when it is tossed
into the air. What is the period and frequency of the rotating baton?
5. Middle c on the musical scale has a frequency of 256
Hz. How many times a seconds is the sound wave vibrating?
6. Little Ms. Watchful noticed that some kids rotated on a carousel
with a frequency of 0.66 Hz. How many times a second did the carousel
rotate?
DISCUSSION PROBLEMS
DIRECTIONS: Discuss the following situations in terms of ideas related
to centripetal force and circular motion:
7. Turns on a race track are banked inward.
8. An earth satellite will stay in orbit at some distance from the earth
only if it going at the right speed.
9. If a satellite is going faster than the required speed, it will leave
its orbit.
10. If a satellite slows down, it will fall to the earth.
11. It is difficult to make a sharp turn if a car is going very fast.
12. A small sports car can negotiate a winding road easier than a large
car.
13. A centrifuge is used as a separator in lab.
14. A spin dry washing machine in operation.
15. A scale attached with a string to a mass shows a greater reading
when the mass is swinging than when it is stationary.
16. A small bucket full of water can be swung in a vertical circle without
the water spilling out.
17. Astronauts could experience variable g forces in a human centrifuge
before manned rocket launches were tried.
18. Riding a bike without a rear fender through a puddle produces a
spray of water down the rider's back
GENERAL PROBLEMS
19. A children's carousel rotates 3 times every 2 seconds. The diameter
of the carousel is 3.0 meters.
What is the period of motion?
What is the tangential velocity of the carousel?
What is the centripetal acceleration of the rider at the edge
of the carousel?
20. When traveling down the road at a constant speed of 55 mph, 26.4
m/s, the tangential velocity of the wheels is also 55 mph. If a car
tire is 65.0 cm in diameter, then;
What is the period and frequency of the spinning car tire?
What is the centripetal acceleration of a rock stuck in the tires
tread?
21. Given that the Earth is 1.49x1011 m from the Sun. And
the earth's period of motion is 365.25 days. Calculate how fast it is
revolving around the Sun. Put your answer in m/s.
22. Do the same thing for the Moon: Given it is 3.8x108 m
from the Earth and revolves around the Earth every 27.31 days. Put your
answer in m/s.
23. Given the Earth has a mass of 5.98x1024 kg and the Moon
has a mass of 7.34x1022 kg, what centripetal force is necessary
to keep each in orbit.
24. A bicycle wheel of radius 0.325 m rotates at a speed of 10.0 m/s
(22.4 mph).
a. If a person is riding the bike, how fast are they traveling?
b. What is the frequency and period of rotation of the bicycle's wheel?
25. The time shaft ride at King's Dominion has a radius of 5.0 m and
spins with a period of 1.3 seconds (only a guess).
a. What is the tangential velocity of the ride?
b. What is the centripetal acceleration of the ride?
c. How many g's is this?
26. An upright clothes washer spins clothes around 50 times in 20 seconds.
Its radius is 0.30 m.
a. What is the period and frequency of the clothes dryer?
b. What is the tangential velocity of the clothes in the washer?
c. What is the centripetal acceleration of the clothes in the washer?
27. A car is traveling at 24.6 m/s (55 mph). The radius of the tire
is 0.40 m. a rock is stuck in the tire.
a. What is the tangential velocity of the rock?
b. What is the centripetal acceleration of the rock?
c. What is the frequency and period of motion?
d. If the rock flies off the tire, how fast will it be traveling and
how will its path of motion be related to the radius vector?
e. If the rock's mass is 0.0010 kg, what force holds the rock in the
tread of the tire?
28. While playing with a HOT WHEELS race set, a child puts together
2 pieces of track on the loop-the-loop. Normally the loop-the-loop is
made with only one piece of track. So now the circumference of the track
is doubled.
a. How is the radius affected?
b. A car that supplies its own velocity runs along the loop-the-loop.
If the same car is used on each size loop-the-loops, then;
- How do the periods compare?
- How do the centripetal accelerations compare?
- How do the centripetal forces compare?
29. While playing Bolo-Master of the world, the radius the rock is twirled
around with is held constant and the velocity is doubled a moment later.
a. How do the centripetal accelerations compare?
b. How do the periods of motion compare?
30. As a car goes around a flat curve, what supplies the centripetal
force necessary for the car to go in a curved path?

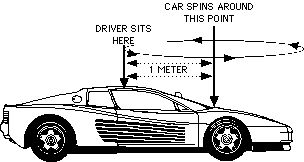

31. A car spins out on an ice covered road. The cars length is
4 meters. The driver is 1 meter from the cars spin center. The
car spins 4 times around in 3 seconds.
What is the period and frequency of the spinning car?
What is the period and frequency of the driver in the car?
What is the tangential velocity of the driver?
What is the centripetal acceleration of the driver?
What is the centripetal acceleration in gs?

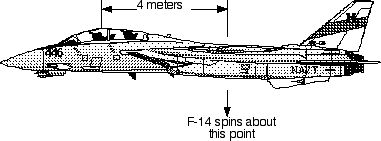

32. In the movie Top Gun, an F-14 fighter jet gets stuck in a
flat spin. The jet rotates such that the pilot, 4 meters from the planes
spin center, feels a centripetal force of 6 gs. There the pilots
hand weighs 6 times as much as normal.
What is the centripetal acceleration of the pilot in m/s2.
What is the period of motion of the pilot?
What is the tangential velocity of the pilot?
33. For every problem that describes a persons motion, calculate
the centripetal force felt on each rider if their mass is 60 kg.
34.
35. A race car is traveling around a race at an average speed
of 65.625 m/s (147
mph). The race car takes 2 minutes and 44 seconds to go around the track
once.
(A) What is the centripetal acceleration of the car?
(B) Is the car WEIGHS 7840 N, then what is the centripetal force
acting on the car?
(C) What do you think supplies the centripetal force to turn the car?
36. An ice skater spins with her hands stretched out from her
body. Her hand is 1.12 meters from the axis the is spinning along. Her
hands are spinning at 5.74 m/s.
(A) What is the centripetal acceleration of her hand?
(B) How many g's is your answer in (A)?
(C) If her hand has a mass of 0.2 kg then what is the centripetal force
acting on her hand?
(D) How long does it take for her to spin around once?
37.A dog is chasing his tail. The radius of the circle that dog
makes is 0.62 meters. The dog runs in a circle 10 times in 7.2 seconds.
a) What is the period of motion of the dog?
b) What is the speed of the dog?
c) What us the centripetal acceleration of the dog?
d) If the dog has a bandanna tied to his neck, mass is 0.024 kg, then
what is the centripetal force acting on the bandanna?
38 A merry-go-round travels with a tangential speed of 3.5 m/s.
Its diameter is 34 m across?
a) What is the centripetal acceleration of the merry-go-round?
b) How long does the merry-go-round take to go around once?
c) What is the centripetal force acting on a 45 kg rider 15 meters from
the center of merry-go-round?
AMUSEMENT PARK APPLICATIONS
39.
40. In an amusement park, there is a ride called the Mad Hatters
Teas Party. The ride is basically a pair of tea cups that spin
very rapidly. The pair itself spin on a larger circle.
a How many gs of centripetal acceleration does the rider feel
at the outer most edge of the circle? (The radius at this point is the
large radius plus the small circles radius.)
b How many gs of centripetal acceleration does the rider feel
at the inner most edge of the circle? (The radius at this point is the
large radius minus the small circles radius.)
c Use an average velocity between the inner and outer most point to
determine the time it takes for the passenger to spin around once in
the smaller circle of motion.
41. For the circular loop, how many gs are felt by the rider at
the bottom of the loop as they enter the loop? (7.5 gs)
43. For the circular loop, how fast is the roller coaster car traveling
at the top of the loop? (12.10 m/s)
44. For the Spiral of Archimedes loop, how many gs are felt by
the rider at the top of the loop as they enter the loop? (2.5 gs)
45. For the Spiral of Archimedes loop, how many gs are felt by
the rider at the bottom of the loop as they enter the loop? (2.3 gs
46.
47.
48. A roller coaster travels in a circular loop of radius 5.0 m. At
the bottom of the loop the roller coaster car is traveling 25.00 m/s.
At the top of the loop the roller coaster car is traveling 20.17 m/s.
a What is the centripetal acceleration exerted by the track at the
top and the bottom of the loop in gs.
b How many gs are felt by the rider at the top and
the bottom of the loop?
49. A roller coaster travels in a loop whose shape is irregular. The
shape is called the spiral of Archimedes or Clothoid. The spiral of
Archimedes is a circular shape whose radius changes as its height increases.
This spiral has a radius of 5 m at the top.
a What is the centripetal acceleration exerted on the rider by the
track at the top of the loop if the rider is traveling 20 m/s
at the top in m/s2.
b How many gs are FELT by the rider at the top of the loop?
c If the track is to be designed so that the same number of gs
are to be FELT by the rider at the bottom of the track, what
must the radius be?
d If the riders mass is 70 kg, What centripetal force is exerted
on the rider at the bottom?

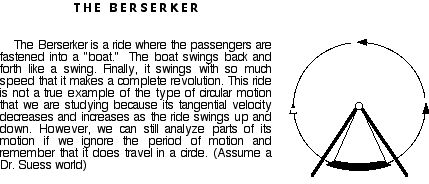

50
The diameter of the Berserker is 25.1 m. When the Berserker reaches
the bottom of the ride it is traveling with a speed of 22.2 m/s.
(a) What is the centripetal acceleration of the ride?
(b) How many g's is this ride?
VEHICULAR APPLICATIONS
51.
52.
53.
54.
CARS AND CORNERING PROBLEMS
Use your cars acceleration chart to solve the following.
55. What is the maximum velocity that a Lamborghini Diablo can go around
a curve if it the curve has a radius of 50 m?
56. What is the maximum velocity that a Range Rover can go around a
curve if it the curve has a radius of 50 m?
57. a How much centripetal acceleration is needed so a car can go around
a curve at 21 m/s
if the curves radius is 50 m? (Answer in gs and m/s2)
b Which cars can navigate the curve without slipping?
58. What is the smallest radius curve that a Nissan 300ZX
can travel around at 25 m/s.
59. How fast could a Geo Metro Lsi take the same curve as
the Nissan in #4?
60. Detective Columbo was looking at an accident when he noticed something.
He saw that the car traveled around a curve of radius 30 m at 15.43
m/s, 34.6 mph, before
the car began to slip to the outside. Columbo sends this information
to you in the crime lab. It is up to you to send him a list of possible
cars that the perpetrator may have been driving. Using physics, which
possible cars could the suspect have been driving?
61. In a court trial a suspect is accused of fleeing the scene of an
accident. The suspects car is a dark green Toyota 4Runner
4WD . A witness testified that they saw a dark green vehicle traveling
about 30 mph around the nearby corners. Could he have been at the scene
of the crime?
62. A 1000 kg car can travel around in a circle with a centripetal
acceleration of 0.7 gs without slipping. When the car loses traction
on a road, it exerts a centripetal acceleration of 0.3 gs.
a What is the cars centripetal acceleration in m/s2
when it is not slipping?
b What is the cars centripetal acceleration in m/s2
when it is slipping?
c How big of a turn could the car turn at a constant velocity of 20
m/s without slipping?
d How big of a turn could the car turn at a constant velocity of 20
m/s when it begins
to slip on a road?
e Here is the scenario. A car is going around a turn without slipping.
Suddenly the tires begin to slip thereby reducing the centripetal acceleration.
Assuming the curve has a radius equal to that in problem c,
what velocity does the car need to travel at in order to safely navigate
the same curve.
f In each problem (c,d) how much time does it take to complete a turn
of 180°?
RATIOS
Note: What ever changes occur to the force, also occur to the acceleration.
Describe the how the first variable is affected assuming the changes
mentioned in the other variables.
63. ac: The velocity is constant while
the radius is tripled
64. T: The velocity is constant while the radius is tripled
65. vt: The acceleration is constant,
the radius is halved
66. T: The acceleration is constant, the radius is halved
67. Fc: The velocity doubles and the
period remains constant
68. vt: The radius is doubled and the
period is tripled
69. R: The force is changed by a factor of 5/8 and the period is changed
by a factor of 3/2
70. T: The force changes by 3/7 and the velocity changes by 3.
71. R: The force changes by 3/7 and the velocity changes by 3.
72. Fc: The radius is tripled and the
period changes a factor of 2/3
73. ac: The velocity changes by a factor
of 7/8 and the radius changes by 6
74. T: The radius is quadrupled and the force is tripled
75. vt: The radius is quadrupled and
the force is tripled
76. r: The acceleration changes by 1/4 and the period changes by 5/6
77. r: ac triples, v remains constant
78. T: v changes by a factor of 3/8, R changes by a factor
of 5/2
79. Fc: r triples, v remains constant
80. v: ac remains constant, T triples
81. ac: v changes by a factor of 4/6, R is halved
82. T: v changes by a factor of 2/3, ac changes
by a factor of 5/4
83. r: Fc doubles, velocity triples
84. v: ac changes by a factor of 1/3, period changes
by a factor of 4/3
1 0.55 Hz
2 25 Hz
3 T=0.47 s f = 2.14 Hz
4 T = 1/12 f = 12 Hz
5 ???
6 ???
22 1011.88 m/s
31 a 3/4 s, 4/3 Hz
b 3/4 s, 4/3 Hz
c 8.38 m/s
d 70.18 m/s2
e 7.16 gs
34 a 5.8 m/s
b 25.48 m/s2
c 3.82 N
35 a 2.51 gs
b 2011 N
36 a 29.42 m/s
b 3.00 gs
c 5.88 N
d 1.23 s
37 a 0.72
b 5.41 m/s
c 76.15 N
d 1.83 N
39 a 9.9 m/s
b 3.17 s
c 18.93 Times
40 a TOP; 8.30 gs
BOTTOM; 12.76 gs
b TOP; 7.3 gs
BOTTOM; 13.76 gs
48 a 20 m/s
b 1.04 gs
c 88.31 m
d 713.44 N
49 a 39.27 m/s2
b 4.01 gs
50 a 1.32 m/s2
b 1324.5 N
c 23.72 s
51 a 31.62 m/s
b 5 m/s
c 6.62 s
52 a 4.90 m/s2
b 4.90 m/s2
c 0.50 gs
d 38.34 m/s
e 40.14 s (For a complete circle)
53 a 7.85 s
b 10.7 m/s
c 2400 N
d 1121.5 kg; [a=2.14 m/s2 ]
54 21.58 m/s
55 19.3 m/s for the 1996 car, 17.57 m/s for the 1990 car
56 Cars>= 0.90 gs
57 75.03 m
58 23.16 m/s
59 cars >= 0.87 gs
63 1/3
64 3
65
66 1/2
67 2
68 4/3
69 45/40 = 9/8
73
74
75
|
