Work from a Graph
Choose the best answer. It does not matter how many questions you miss. What matters is that you learn from any mistakes.
Show all questions
<=
=>

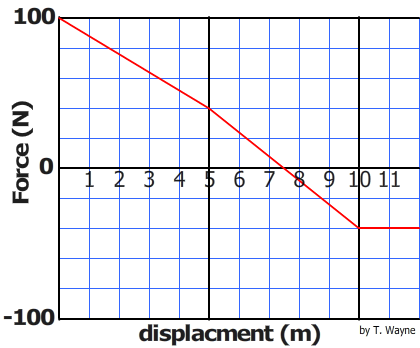

Calculate the work from 1 to 5 m.
?
2000 J
?
20 J
?
400 J
?
4500 J
Was energy added or removed from the object in the previous problem as the object moved from 1 to 5 meters?
?
Added.
?
Removed.
Calculate the work that is done from 7 to 12 meters?
?
1500 J
?
- 1500J
?
-1000 J
?
3500 J
For the previous question, was energy added or removed from the body as it moved from 7 to 12 meters?
?
Added.
?
Subtracted.

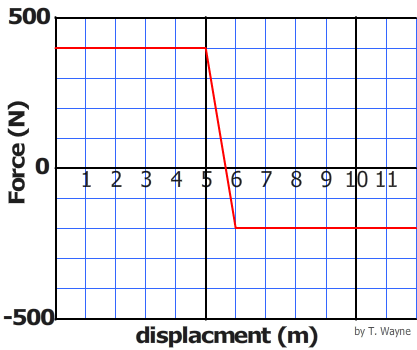

Which 3 meter interval does the greatest amount of work? Take the absoulte value of the work when comparing the numbers.
?
0-3 meters
?
3-6 meters
?
6-9 meters
?
9-12 meters

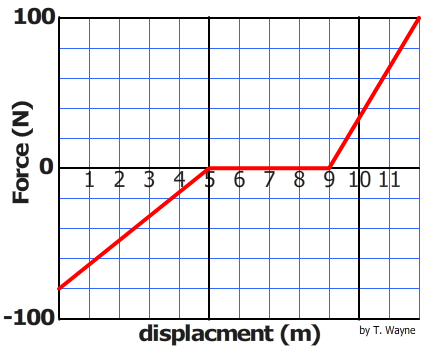

How much work is done from 0-5 seconds?
?
1000 J
?
500 J
?
350J
?
0 J

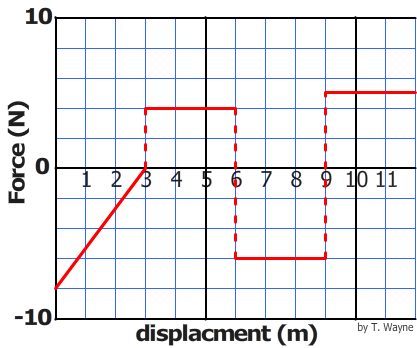

Calculate the work that is performed from 0 to 5 m?
?
-500 J
?
-300 J
?
-200 J
?
750 J
Was the work that was calculated in the previous problem added to or subtracted from the body?
?
Added.
?
Subtracted.
