There two ways to add and subtract vectors, graphically and by components

If you had a personal helicopter, then you could fly directly to the ending location. You directions would be fly 5.7 blocks 43 degrees north of pointing due east. Click the "Go" button below to the helicopter in action.

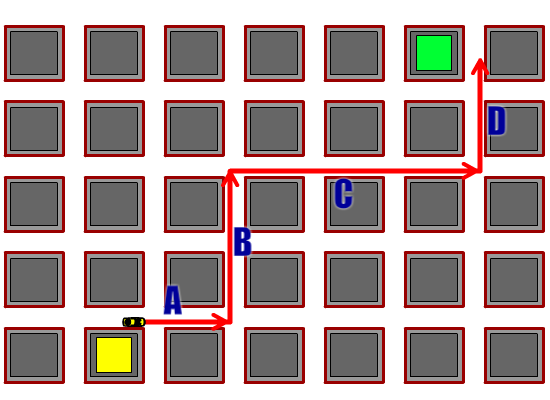

In the "typical" algebra class, this is written as "A+B+C+D = R." That is because the typical algebra class only uses scalers to describe quantities. The arrows above there letters mean that these variables are vectors, not scalers. This also implies when describing the answer "R," the answer will have two parts, a magnitude and a direction.( Note: textbooks and other resources will often use a bold face letter instead of arrows of the top of the variables to indicate a vector quantity.)

"R" is the result of adding up the vectors, A, B, C, and D. However, since the answer is a vector,"R" is called the "resultant." The resultant is the vector answer. This means the answer has both magnitude and direction. The answer might look something like "5 m, right," or "3 lbs, up," or "6 m/s, 31 degrees North of West."

The A+B+C+D is the addition operation in math. Notice how the vectors touch each other. They are drawn "tip-to-tail." The answer is found by drawing the resultant from the very beginning to the very end. Try it for yourself below.

Notice a couple of things about your vector addition.

• The resultant has the same starting and ending points as the vectors placed tip-to-tail.
• It is okay for the resultant to cross other vectors when it is drawn.
• The order of operations does not matter for addition. (This is the commutative property.)
