Introduction

To describe circular motion, we will use radians and not degrees. But you will need to convert back and forth between these two measurement systems.

2π=360°

Next examine the distance and radian relationship.

The distance around a circle is (2π)r.

If the distance around the circle is called "s'" then

s=(2π)r

(You proabbaly recognize this as the formula for a circle's circumference.) "2π" is the angle around a circle in radians. Therefore,

s = θr

Where θ is measured in radians and "s" is the distance around the circle. "s" is called the "sector length."

Some terms to be familiar with when solving word porblems:

  • 1 Revolution = 2πr
  • 1 Rotation = 2πr
  • 1 Cycle = 2πr
  • 1 Spin = 2πr
  • 360° = 2π rad
  • 180°= π rad

The measurement of a radian is not a unit. It is a measurement. This is because if I rearrange the formula s=rθ for θ. I get a length measurement divided by another length measurement.

These length units divide out. The term, "rad," is used to represent the radian on an answer. It is used on answers as if it was a unit of measurement.



Example 1
  • Question
  • Solution on Paper
  • Video Solution

Jupiter has 61 moons. Suppose all the moons were separated by 5.90° from each other and they all orbited at the same distance of 425,000,000 m from Jupiter's center. What distance, along the orbit's path, lies between each Moon.

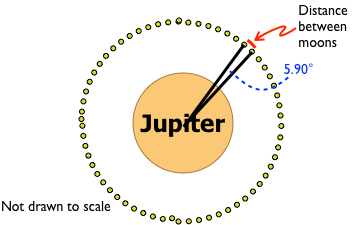

Image of the problem

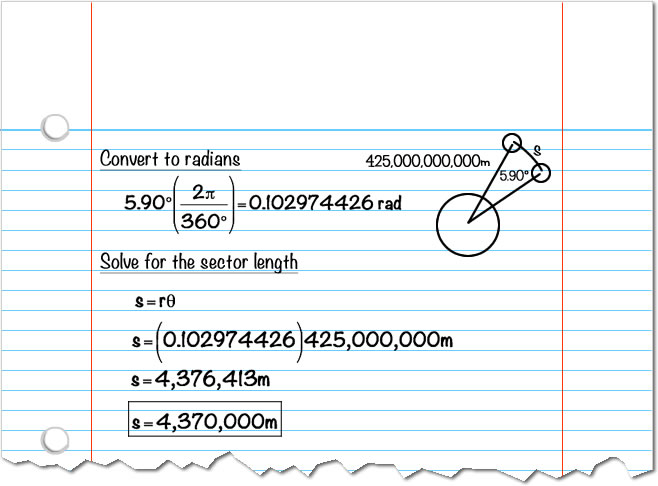

Solution on Notebook Paper

This video can be found on YouTube at http://youtu.be/YdMjlF0dfhE



Angular Velocity

In linear kinematics, the average velocity is defined as how quickly the postion is changed. In rotational motion, the velocity is called the angular velocity and it is defined as how quickly the angled is changed. The lower case Greek letter omega, "ω," is used to represent the angular velocity.

Δθ = θf - θo. The units for the angular velocity are radians/second. This is written as "r/s."



Example 2
  • Question
  • Paper Solution
  • Video Solution

Pencil spinning is a neat skill that I never quite got the hang of. Here is a 48 second YouTube video that describes how it is done.

This video can be viewed at http://youtu.be/WwUCXq7FKHs

What is the angular velocity of a pencil that spins around 180° in 0.45 seconds. The pencil spins with a radius of 8.10 cm. What is the angular velocity of the pencil?

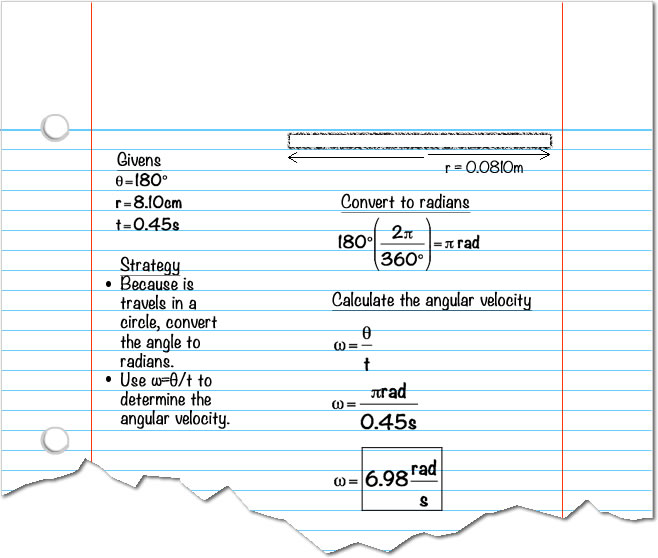

This is what your paper should look like.

Solution

Content 3

Angular Acceleration

Previously acceleration was described as the how quickly the velocity changes. With rotational kinematics the angular acceleration is defined as how quickly the angular velocity, ω, changes. The formula is

angular acceleration equals change in angular velocity divivided by the change in time.

α is the angular acceleration. "α" is the lowercase Greek letter alpha. Δω is the ωfinal - ωinitial. Δt is the elapsed time.



Example 3
  • Question
  • Paper Solution
  • Video Solution

A potter sits at the potter's wheel shown below. When she kicks the wheel on the bottom, she changes its angular velocity from (π/2)radians per second to (3/2)(π)radians/second in 0.100 seconds. What angular acceleration did she give the wheel? The disk on the bottom has a mass of 51.5 kg.

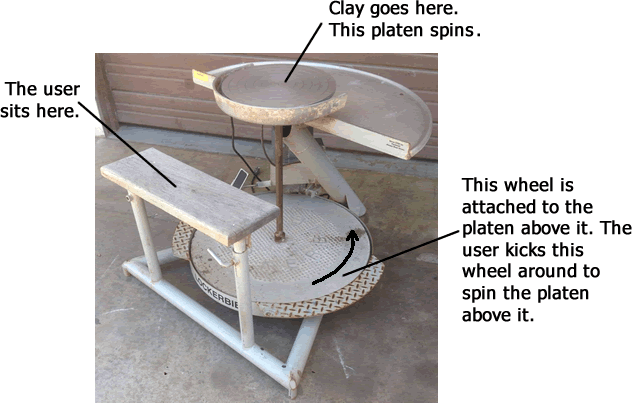

Potter's wheel

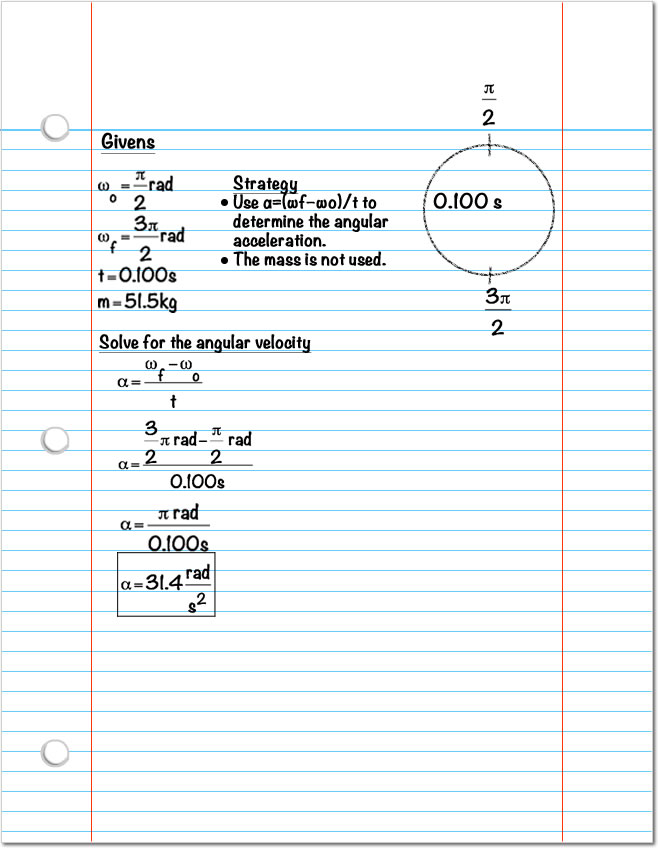

Solution written on notebook paper
Coming soon...
Quiz
